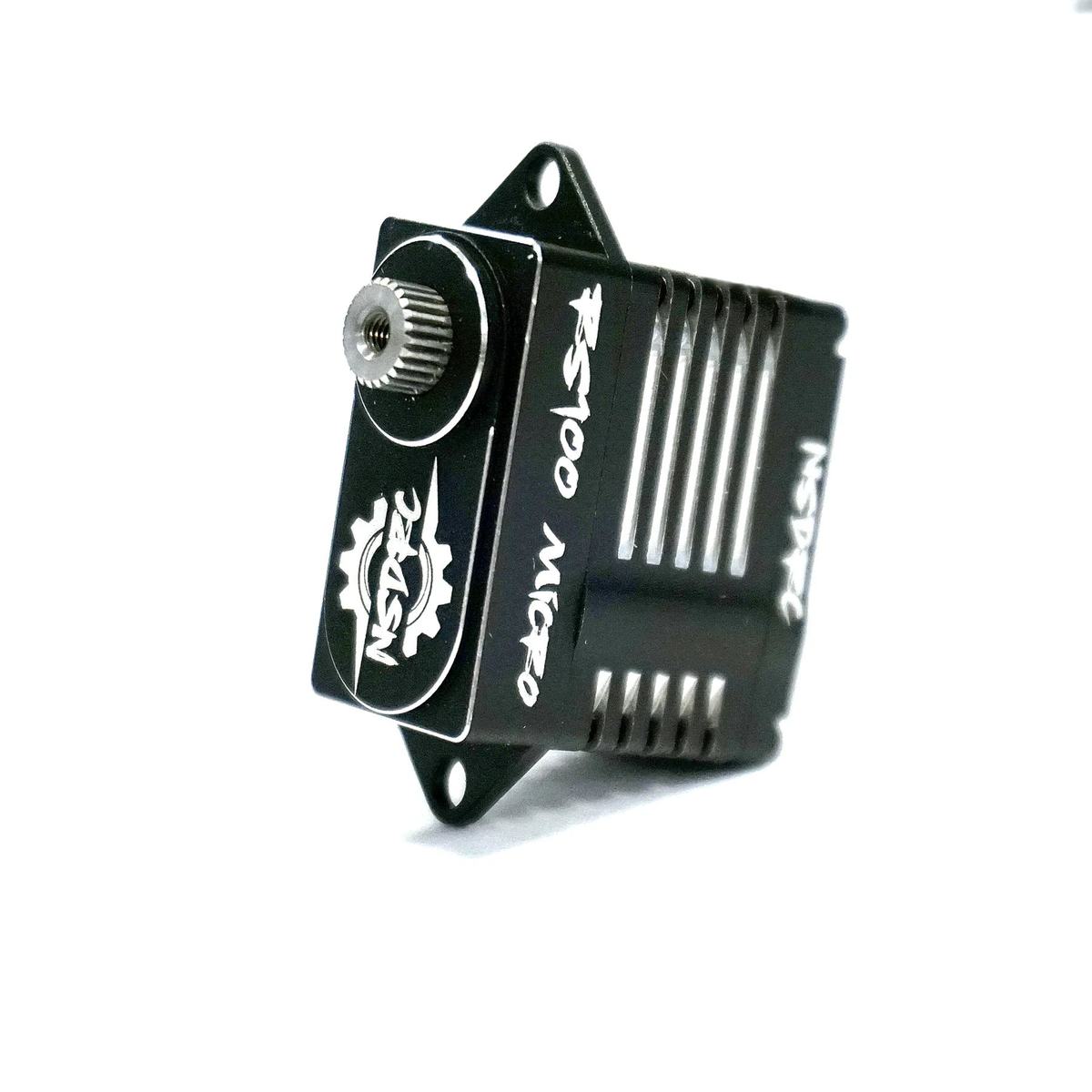

NSDRC RS100 HIGH TORQUE MICRO SERVO – BLACK

* As of April 2nd 2023, the RS100 has been upgraded! With a new motor and gears, it now has even more power, lower amp draw, and now with a magnetic angle sensor for superior brake/hold!

Comes with our custom Cnc aluminum micro spool

Winch controller built in, no controller needed.

Water Resistant with 7 point O-ring seal.

Operating Voltage: 5v – 8.4v

Torque Speed

6v- 152oz/ 11kg 0.09 @ 6v

7.4v- 175oz/ 12.7kg 0.07 @ 7.4v

8.4v- 197oz/ 14.2kg 0.06 @ 8.4v

Spooling Speed:
8.4v – 2.6 seconds per foot
7.4v – 3.2 seconds per foot

Full Cnc Aluminum Case

Hardened Steel Gears

Magnetic Angle Sensor

High Quality Motor

Spline: 25T 4.9mm Micro

Voltage: 5v-8.4v

Wire Length: 185mm

Weight: .70 oz

Dimensions: 23 x 12 x 26mm

Warranty: 6 Month
