This tool has superseded to QT1012i.

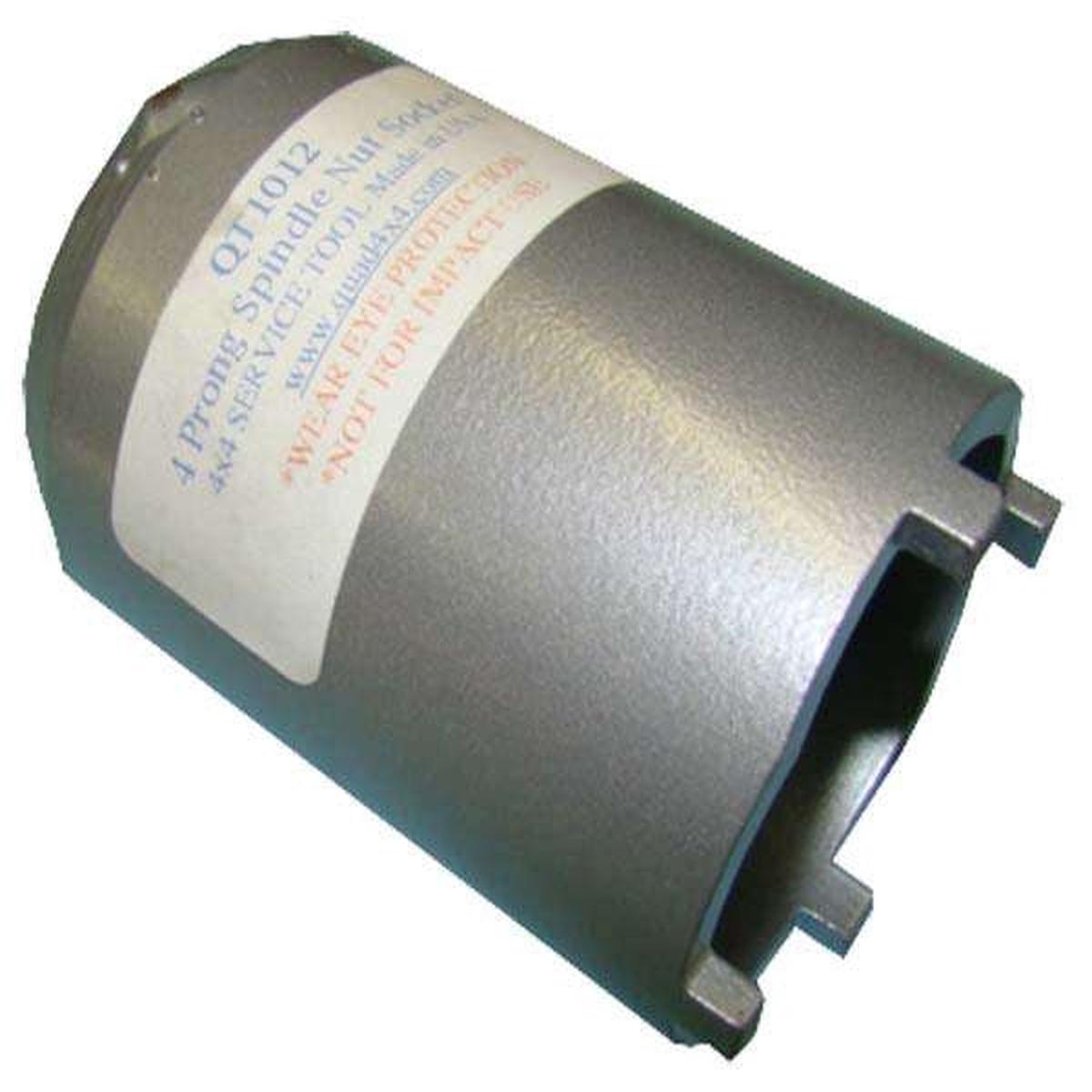

QT1012 4 Lug 4×4 Front Spindle Nut Socket fits 4 slot spindle nuts used on many axles from the late 1950’s to 1996 including Dana 28IFS, Dana 30, Dana 35IFS, Dana 44, Dana 44IFS, Dana 60, and GM 10 Bolt front axles. Services both double nut and Ford ratchet type single nut configurations. QT1012 USA Made.

Need More Info? Use the handy Links below to access over 40 years of Dan’s product and vehicle specific Tech Notes to easily get the information you need for your vehicle’s repair, maintenance, or upgrade project!

Dan the Gear Man Tech Notes:
Tool Options

Tech Note 1: Tool Options
If you do 4×4 front axle service that includes 1985 to 1992 Ford F-150 and full-size Bronco with 1-5/8″ thread ratchet type spindle nuts, this is the socket you need. For all other applications that have either 38mm or 1-5/8″ spindle threads with 4 slot nuts that measure approximately 2-3/16″ to 2-1/4″ in diameter, you can also useQT1025 Universal Spindle Nut Socket. For 1980 and newer Dana 50IFS and Dana 60 front axles with 2″ spindle threads and 4 slot spindle nuts, seeQT1018 or QT1110.

Applications:

Chevy and GMC:
Blazer, Jimmy, Suburban, K10/15, and K20/25 All with either Dana 44 or GM 10 Bolt Front Axles

Ford:
Bronco II, Ranger Pickup, Explorer (manual hubs only)
Bronco
F100, F150, and F250 with Dana 44 or Dana 44IFS axles (does not fit most auto hub applications)
F-250 Crew Cabwith Dana 60: 1973, 1974, 1975, 1976, 1977

Dodge:
Ramcharger, W150, W250 (except diesel): 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

Jeep:
Full Size Wagoneer, Cherokee, J10 and J20: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989

IHC:
1100
