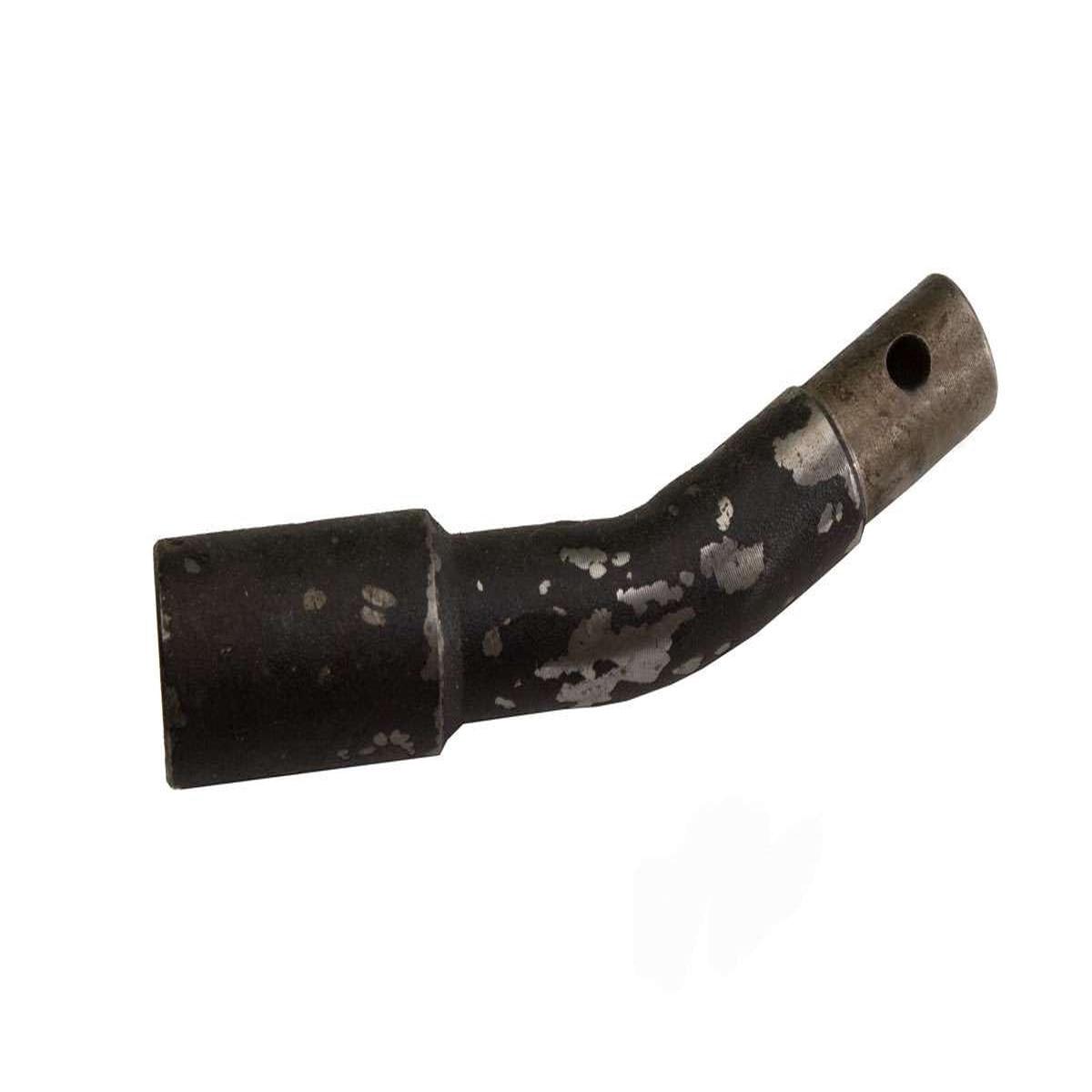

QU10268U 5/8″ SAE Female Thread Upper Shift Stub Insert for 1992-1997 NV4500 5 speed transmissions with integral shift towers is a good used part. QU10268U is intended for conversion applications using a 5/8″ Fine Thread Shift Lever.

Need More Info? Use the handy Links below to access over 40 years of Dan’s product and vehicle specific Tech Notes to easily get the information you need for your vehicle’s repair, maintenance, or upgrade project!

Dan the Gear Man Tech Notes:
Replacement
Integral Shift Tower
Matching Stub Parts
Matching Parts
Applications

Tech Note 1: Replacement
QU10268u is an aftermarket part used in conversion applications. The female threaded shift lever shank is 5/8″ fine thread mm. QU10268u Upper Stub will fit the shift stub knuckle on any 1992-1997 Dodge or 1992-1994 GM New Venture NV4500 transmission with the integral tower shift cover. To replace the upper stub: Drive out the slightly tapered solid pin that holds the upper stub to the knuckle. Remove the upper stub (usually a VERY tight fit). Line up the pin holes on the knuckle and new upper stub. Press in new upper stub. Install solid pin.

Tech Note 2: Integral Shift Tower
If you have an older NV4500 with the integral shift tower (GM to 1995, Dodge to 1997), and you have trouble shifting into gear (usually 3rd or 4th) the culprit may be a worn shift tower seat. A very strong spring exerts down pressure against the shift stub. Over time, the stub will wear into the integral aluminum seat. In extreme cases, the seat wears to the point where the shift stub base will hit the shift rail. When this happens, the friction between the rail and stub can make shifting very difficult or cause the shifter stub to jump out of the rail notch. The solution is to replace QU10262 cover plate or cover assembly. The later design, QU10706 flat top cover with a removable tower is less prone to wear in the shift tower. Early and late covers are interchangeable as far as fitting the transmission goes, but you have to make sure you order the correct stub or tower to match your shifter when changing top cover types.

Tech Note 3: Matching Stub Parts
The chart below lists the Shift Stubs, Upper Stub, and Stub Kits for 1992-1997 New Venture NV4500 Transmissions with Integral Tower Shift Covers

Tech Note 4: Matching Parts
text

Applications:
Conversion Applications using 1992-1994 GM or 1992-1997 Dodge NV4500 Transmissions
