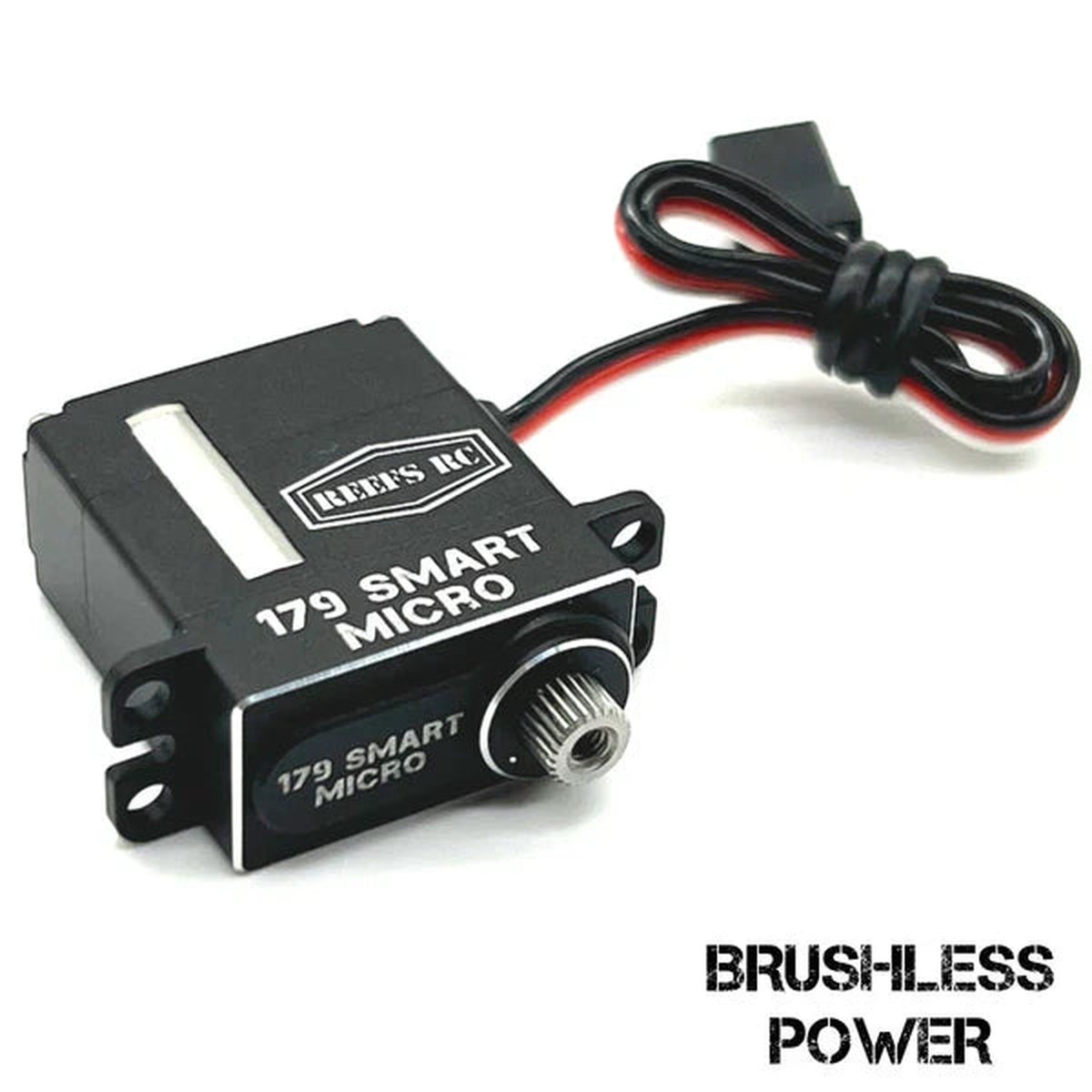

With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It’s smart too, which allows you to program thisservo for either standard servo or winch duty with our optional programmer.

SPECIFICATIONS:

• High Torque High Speed
• BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
• Magnetic Angle Sensor
• Pulse Width Modulation Control
• REEFS LINK required for Programming
• (Optional) Comes as Servo
• Voltage 6-8.4 / Internal: Metal& Steel Gears
• CNC Aluminum Casing / Bearing Type: 2BB
• Temp Rate: -15C~ +70C
• Weight: .74oz / 21g

Dimension: (LWH)

• .90 x .47 x 1.08 in
• 23 x 12 x 27.5 mm

Torque:

• 135 oz @ 6.0v
• 159 oz @ 7.4v
• 179 oz @ 8.4v

Speed:

• .09 sec @ 6.0v
• .07 sec @ 7.4v
• .06 sec @ 8.4v

Spline:25T Micro

Dead Band Width:2s

Unload Current:

• 150mA @ 4.8V
• 180mA @ 6.0V
• 240mA @ 7.4V
• 300mA @ 8.4V

Load Current:

• 1600mA @ 4.8V
• 2000mA @ 6.0V
• 2200mA @ 7.4V
• 2400mA @ 8.4V
