NOT FOR HEAVY MODIFIED RIGS. GET A 179Micro instead.
Perfect RTR replacement.
With up to55oz of torque and .08s response time, this digitalsub-micro servo is small and mighty.

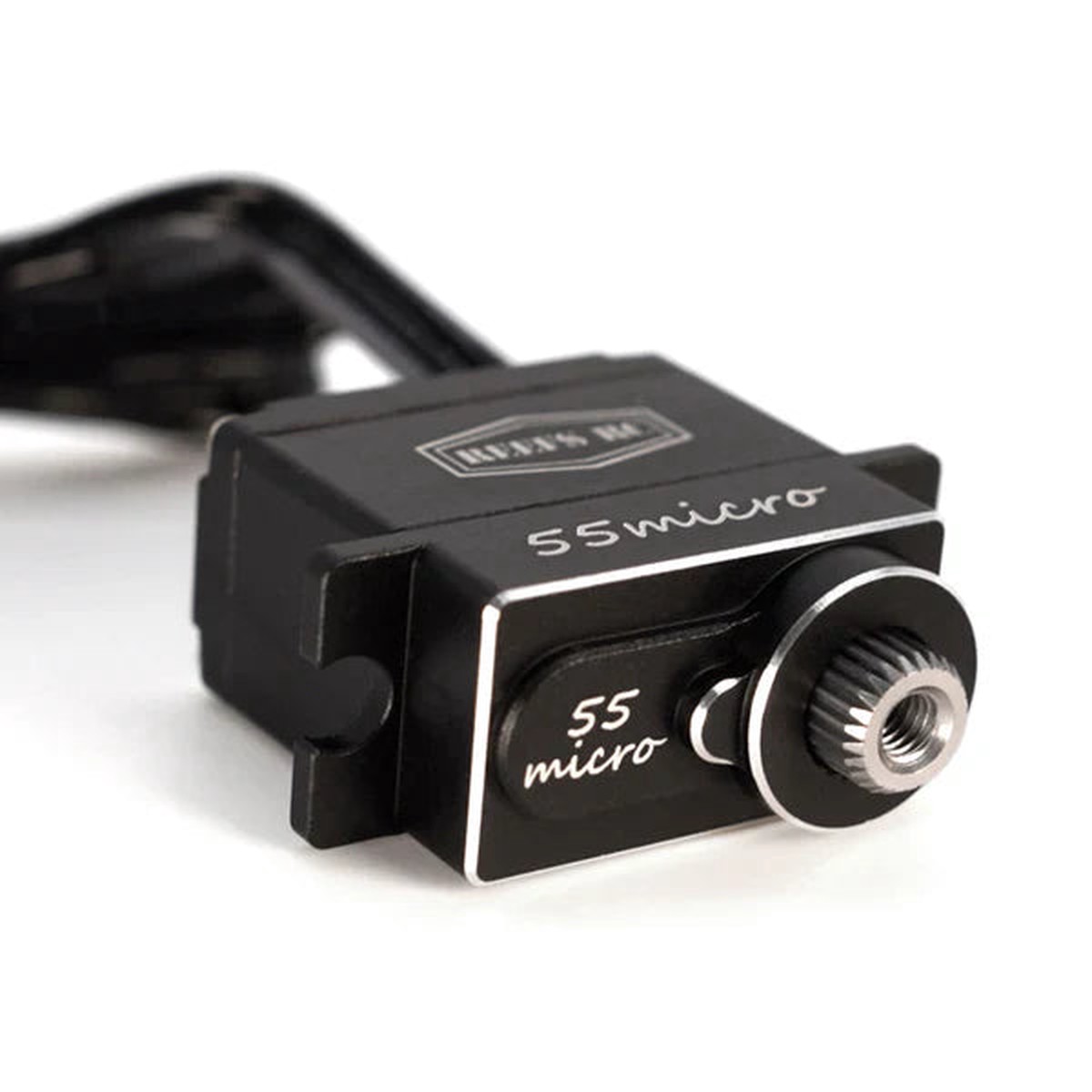

The 55Micro is a Direct-fit upgrade for the TRAXXAS TRX-4 and TRAXXAS TRX-4M and offers greater performance and reliability anywhere a TRAXXAS 2065 sub-micro servo might be utilized. Offering adigitalcore withpulse width modulation control,so your servo will operate ina highly efficient and consistent cycle. If being waterproof and Fully programmable isn’t enough, now you can run higher voltage (up to 8.4v),so in most cases there is no need to bypass this tiny servo in your system.

FITS:

• Direct-Fit Replacement Upgrade for TRAXXAS TRX-4 TRAXXAS TRX-4M or #2065 servo
• Any Sub-Micro application that demands high performance and reliability
• UtilizesStandard 25Tservo hornsuch asREEFS V2 HD Shield Servo Horn

SPECIFICATIONS:

• Waterproof
• Fully Programmable
• High Efficiency w/ Pulse Width Modulation Control
• Steel Gears
• CNC Aluminum Casing
• 2 Ball Bearings
• BEC Not Required

Dimension: (LWH)

• .90 x .50 x.86 in
• 22.9 x12.8 x 22 mm

Torque:

• 41oz @ 6.0v
• 48oz @ 7.4v
• 55oz @ 8.4v

Speed:

• .11 sec @ 6.0v
• .09 sec @ 7.4v
• .08 sec @ 8.4v

Spline:25TSTANDARD

Dead Band Width:3s

Travel:180

Angle:No Limit

Voltage:4.8v-8.4v

Weight:.67oz/19g

Operating Temperature Range:-59Fto159F / -15C to +70C
