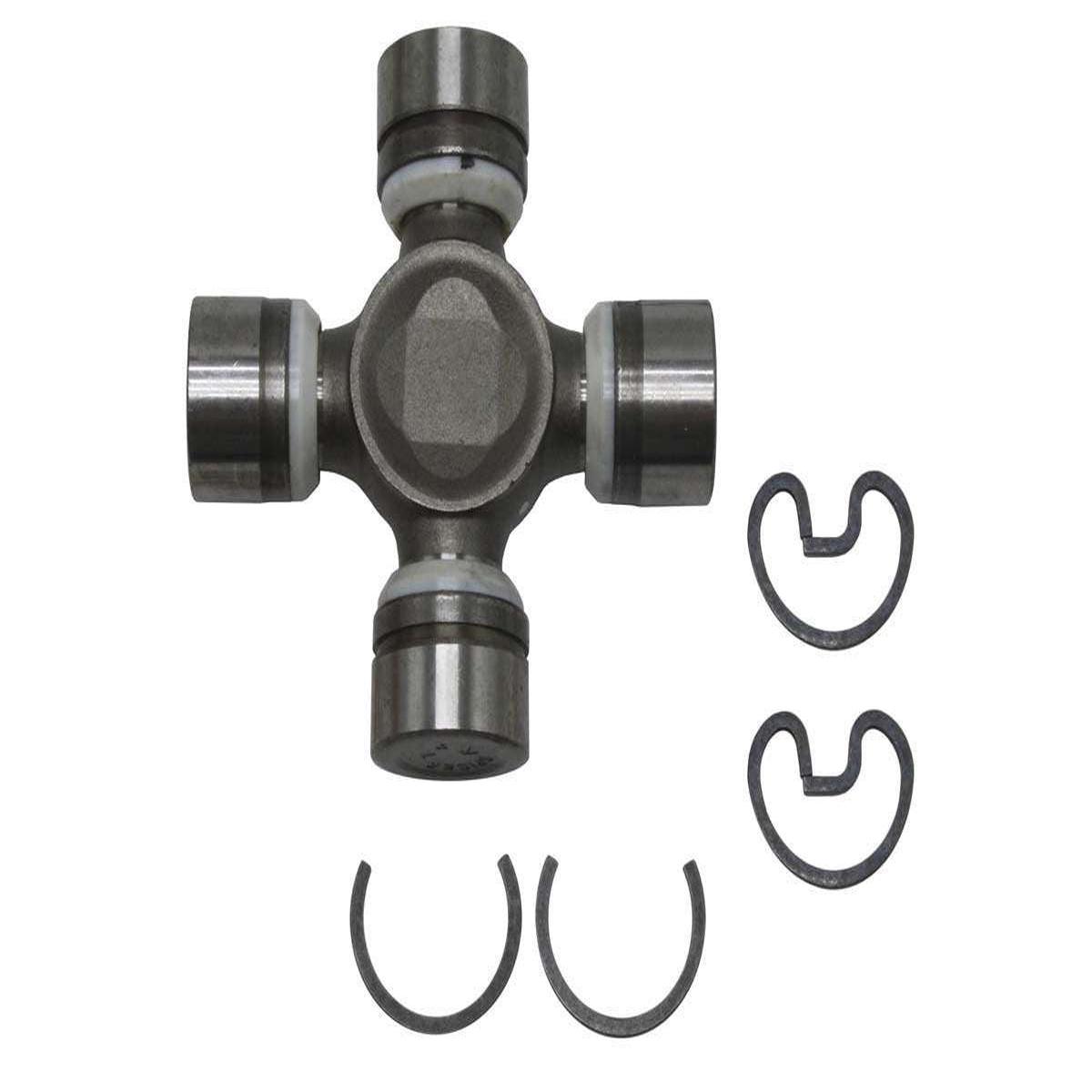

TK40804 Torque King 1330 x 7290 U-Joint with 2 External and 2 Internal Snap Rings is a premium quality, heavy-duty factory-lubed Universal Joint for Spicer 1330 x Detroit 7290 series applications. TK40804 features extra-hard, cold-forged, alloy steel cross, High-temperature synthetic lubricant, Multi-lip seals, precision ground cups, tough, durable thrust washers between the journal ends and cups, and corrosion resistant Snap Rings. TK40804 is most often used to replace the original (slip yoke to axle pinion yoke) conversion universal joint used by Dodge for very late 1998 to 1999 Dodge Ram 1500, Ram 2500, and Ram 3500 4×4 trucks (has 2 external snap rings for the slip yoke and 2 internal c-clips that fit against the inside of the pinion yoke).

Also See QU40764 Hot Forged Universal Joint.

Need More Info? Use the handy Links below to access over 40 years of Dan’s product and vehicle specific Tech Notes to easily get the information you need for your vehicle’s repair, maintenance, or upgrade project!

Dan the Gear Man Tech Notes:
U-Joint Specs
Also Used for Retrofitting
Applications

Tech Note 1: U-Joint Specs
This is a special conversion universal joint used to adapt a driveshaft with a slip yoke made to external snap ring Spicer 1330 specifications to an axle with a pinion yoke made to fit Detroit Universal 7290 series internal c-clip u-joints.
Spicer 1330 external snap ring universal joints have 1-1/16″ diameter cups and have a 3-5/8″ overall width.
Detroit 7290 internal C-clip u-joints have 1-1/8″ diameter cups and fit yokes with an inside measurement of 2-5/8″.

Tech Note 2: Also Used for Retrofitting
The only original equipment use I know of for this special conversion u-joint was by Dodge for the front driveshaft to front axle coupling on early to mid production 1999 full size Ram 4×4 trucks. It can also be used for retrofitting any other Dodge application that requires coupling a 1330 series yoke to a 7290 series yoke such as when replacing the factory slip yoke on 1993-1998 4x4s with QU40701 Slip Yoke.

Applications:

Original Equipment:
Dodge Ram 1500, Ram 2500, Ram 3500 4×4 Trucks: 1999

Common Conversion Applications when retrofitting QU40701 Front Driveshaft Slip Yoke:
Dodge W-250 and W-350 with the Cummins Diesel Engine: 1993
Ram 1500, Ram 2500 Ram 3500 4x4s: 1994, 1995, 1996, 1997, 1998
